1″ Radial Vortex Nozzle

shamrocktools — Thu, 21 Dec 2017 15:57:21 +0000

The 1″ Radial Vortex Nozzle by Shamrock is a cleaning nozzle which uses different jet angles for a more efficient scrubbing action. This cleaning nozzle is mostly used for penetrating hard soap, grease plugs or root masses. It is made of tool-quality, wear-resistant materials for a longer life. While this nozzle can’t be retooled, it is a great nozzle for the user on a budget. it can be used in pipe sizes ranging from 6 to 18 inches.

Dimensions:	Diameter (in.)	Length (in.)	Weight (lbs.)
1″ Radial Vortex (18◦/24◦)	1.875	3.75	1.3

Jet Information:	Number of Jets	Jet Angles	Carbide Inserts
1″ Radial Vortex (18◦/24◦)	6 Rear Jets	18°/24° Rear Jets	N/A

Product SKU Variations: 32-F, 32-F SPCL, 32-FPF, 32-FPF N/F, 32-FQD, 32-FRD, 32-FRD N/F, 32-FSD N/F, 32-FSE, 32-FUD, 32-FUD N/F, 32-FUE, 32-FSD

The post 1″ Radial Vortex Nozzle appeared first on Shamrock.

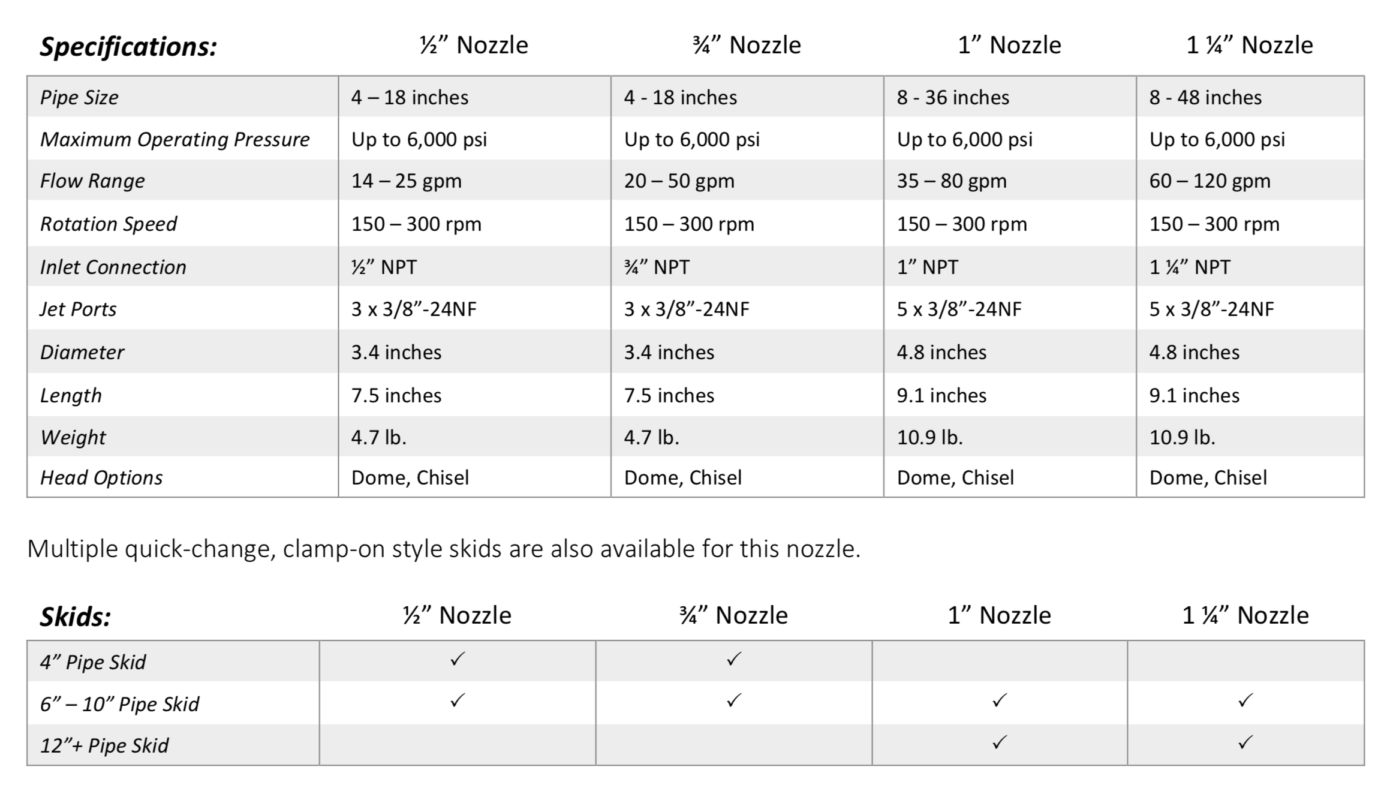

1/2″ Huracan®

shamrocktools — Wed, 20 Dec 2017 21:21:14 +0000

The 1/2″ Huracan® is the newest addition to the Shamrock nozzle lineup. This slow precision nozzle allows for a thorough cleaning of any pipe diameter. Internal dampening fluid is used to provide a controlled rotation. A long-lasting tungsten seal is incorporated into the nozzle design to separate high pressure water from the internal dampening fluid. Replaceable carbide jet inserts are used to help eliminate turbulence and to create a cohesive output stream of water. The 1/2″ Huracan® operates best in pipe sizes ranging from 4 to 18 inches.

Download Brochure (PDF) Download Manual (PDF)

The post 1/2″ Huracan® appeared first on Shamrock.

1-1/4″ Little Shamrock™

shamrocktools — Wed, 20 Dec 2017 17:07:34 +0000

The 1-1/4″ Little Shamrock is a sweep steel skid nozzle designed to flush large size pipe. It is pressure-welded with a heat-treated spring steel skid wire which allows it to last for many years. Rear jets with replaceable carbide inserts and flow straighteners are set at optimum impact angles to guarantee performance and long service life. It is used in pipe sizes ranging from 24 to 60 inches.

Dimensions & Weight:	Diameter (in.)	Length (in.)	Weight (lbs.)
1 NPT	7.375	21	35

Jet Information:	Number of Jets	Jet Angles	Carbide Inserts
1 NPT	12 Dual Degree Rear Jets	10°/15° Rear Jets	C13

The post 1-1/4″ Little Shamrock™ appeared first on Shamrock.

1-1/4″ Super Grenade Penetrator

shamrocktools — Tue, 19 Dec 2017 17:43:07 +0000

The 1-1/4″ Super Grenade Penetrator Nozzle by Shamrock is a bullet-style, heavy-duty nozzle for mainline work used to break up obstructions. It has been engineered to stay on the bottom of the pipe. The water jets on this nozzle have replaceable carbide inserts for long service life. The 1-1/4″ Super Grenade Penetrator Nozzle can be used in pipe sizes ranging from 6 to 30 inches.

Dimensions:	Diameter (in.)	Length (in.)	Weight (lbs.)
1-1/4″ Super Grenade Penetrator	3.25	5.5	7

Jet Information:	Number of Jets	Jet Angles	Carbide Inserts
1-1/4″ Super Grenade Penetrator	8 Rear Jets	12° Rear Jets	C13

Product SKU Variations: 64-G SPCL, 64-GUD, 64-GWD, 64-GYD, 64-GYE

The post 1-1/4″ Super Grenade Penetrator appeared first on Shamrock.

1″ Super Grenade Penetrator

shamrocktools — Tue, 19 Dec 2017 17:37:52 +0000

The 1″ Super Grenade Penetrator Nozzle by Shamrock is a bullet-style, heavy-duty nozzle for mainline work used to break up obstructions. It has been engineered to stay on the bottom of the pipe. The water jets on this nozzle have replaceable carbide inserts for long service life. The 1″ Super Grenade Penetrator Nozzle can be used in pipe sizes ranging from 6 to 30 inches.

Dimensions:	Diameter (in.)	Length (in.)	Weight (lbs.)
1″ Super Grenade Penetrator	2.625	4.25	3.5

Jet Information:	Number of Jets	Jet Angles	Carbide Inserts
1″ Super Grenade Penetrator	8 Rear Jets	12° Rear Jets	C13

Product SKU Variations: 64-F SPCL, 64-FPF, 64-FQD, 64-FRD, 64-FRE, 64-FSD, 64-FSE, 64-FSF, 64-FTE, 64-FUD, 64-FUE

The post 1″ Super Grenade Penetrator appeared first on Shamrock.

1-1/4″ SHAMROCK-ET®

shamrocktools — Tue, 19 Dec 2017 16:35:16 +0000

The 1-1/4″ SHAMROCK-ET® by Shamrock is a popular mainline nozzle used for sweeping 6-18″ pipe. It is designed with laminar flow jets to produce straight streams for maximum flow efficiency. The missile shape design and smooth exterior of this nozzle allows it to create a path for large flushing nozzles or to penetrate hair masses, root masses, hard grease, sand and gravel. It is manufactured from alloy steel, which is then plated and heat treated for long service life. It can be used in pipe sizes ranging from 6 to 18 inches.

Features:

Thrust fins with three large rear carbide jets set at 5°
Flow straighteners for increased productivity
Long water paths for smooth, laminar flow

Dimensions & Weight:	Diameter (in.)	Length (in.)	Weight (lbs.)
1-1/4″ SHAMROCK-ET®	4	13	12

Jet Information:	Number of Jets	Jet Angles	Carbide Inserts
1-1/4″ SHAMROCK-ET®	3 Rear Jets	5° Rear Jets	C13

Product SKU Variations: 90-G SPCL, 90-GSD, 90-GUD, 90-GYD

The post 1-1/4″ SHAMROCK-ET® appeared first on Shamrock.

1″ SHAMROCK-ET®

shamrocktools — Tue, 19 Dec 2017 16:27:54 +0000

The 1″ SHAMROCK-ET® by Shamrock is a popular mainline nozzle used for sweeping 6-18″ pipe. It is designed with laminar flow jets to produce straight streams for maximum flow efficiency. The missile shape design and smooth exterior of this nozzle allows it to create a path for large flushing nozzles or to penetrate hair masses, root masses, hard grease, sand and gravel. It is manufactured from alloy steel, which is then plated and heat treated for long service life. It can be used in pipe sizes ranging from 6 to 18 inches.

Features:

Thrust fins with three large rear carbide jets set at 5°
Flow straighteners for increased productivity
Long water paths for smooth, laminar flow

Dimensions & Weight:	Diameter (in.)	Length (in.)	Weight (lbs.)
1″ SHAMROCK-ET®	4	13	12

Jet Information:	Number of Jets	Jet Angles	Carbide Inserts
1″ SHAMROCK-ET®	3 Rear Jets	5° Rear Jets	C13

Product SKU Variations: 90-FSD, 90-F, 90-F SPCL, 90-FND, 90-FNF, 90-FPF, 90-FQD, 90-FQF, 90-FRC, 90-FRD, 90-FRE, 90-FSF, 90-FUD, 90-FUE

The post 1″ SHAMROCK-ET® appeared first on Shamrock.

1″ 30◦ Grease Nozzle

shamrocktools — Tue, 19 Dec 2017 15:43:11 +0000

The 1″ 30◦ Grease Nozzle by Shamrock is a smooth, streamlined nozzle designed to penetrate and clear blockages. It is perfect for pipes with steeper grades and has replaceable carbide inserts for long service life. The 1″ 30◦ Grease Nozzle can be used in pipe sizes ranging from 6 to 18 inches.

Dimensions & Weight:	Diameter (in.)	Length (in.)	Weight (lbs.)
1″ Grease (30◦)	2.25	7.5	2

Jet Information:	Number of Jets	Jet Angles	Carbide Inserts
1″ Grease (30◦)	6 Rear Jets	30° Rear Jets	C13

Product SKU Variations: 39-30F, 39-30F SPCL, 39-30FPF, 39-30FQD, 39-30FRD, 39-30FRE, 39-30FSD, 39-30FSF, 39-30FUD, 39-30FUE

The post 1″ 30◦ Grease Nozzle appeared first on Shamrock.

1″ 18◦ Grease Nozzle

shamrocktools — Tue, 19 Dec 2017 15:37:00 +0000

The 1″ 18◦ Grease Nozzle by Shamrock is a smooth, streamlined nozzle designed to penetrate and clear blockages. It is perfect for pipes with steeper grades and has replaceable carbide inserts for long service life. The 1″ Grease Nozzle can be used in pipe sizes ranging from 6 to 18 inches.

Dimensions & Weight:	Diameter (in.)	Length (in.)	Weight (lbs.)
1″ Grease (18◦)	2.25	7.5	2

Jet Information:	Number of Jets	Jet Angles	Carbide Inserts
1″ Grease (18◦)	6 Rear Jets	18° Rear Jets	C13

Product SKU Variations: 39-18F, 39-18F SPCL, 39-18FPF, 39-18FQD, 39-18FRD, 39-18FRE, 39-18FSD, 39-18FUD, 39-18FUE

The post 1″ 18◦ Grease Nozzle appeared first on Shamrock.

1/2″ Grease Nozzle

shamrocktools — Wed, 06 Dec 2017 18:11:00 +0000

The 1/2″ Grease Nozzle by Shamrock is a smooth, streamlined nozzle designed to penetrate and clear blockages. It is perfect for pipes with steeper grades and has replaceable carbide inserts for long service life.

Dimensions & Weight:	Diameter (in.)	Length (in.)	Weight (lbs.)
1/2″ Grease (30◦)	2.25	7.5	2

Jet Information:	Number of Jets	Jet Angles	Carbide Inserts
1/2″ Grease (30◦)	5 Rear Jets	30° Rear Jets	C13

Product SKU Variations: 29-2

The post 1/2″ Grease Nozzle appeared first on Shamrock.
